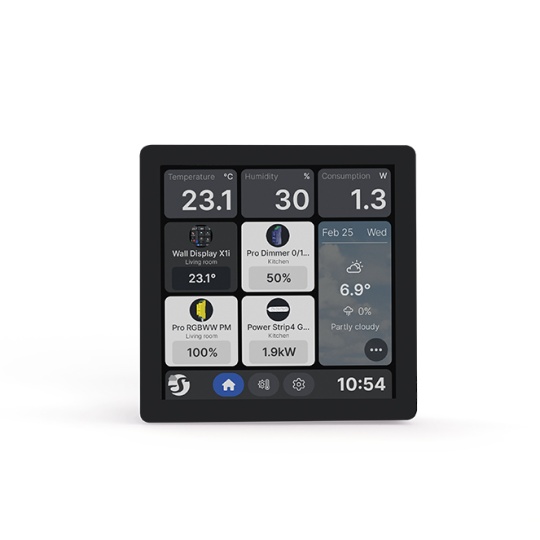

Shelly Wall Display X1i Black — 4" touch control panel with built-in relay, Wi-Fi 6 + Bluetooth
Specifications
Reference:
SH WALL DISPL X1I BL
Subcategory:
Construction Material
Type:
Controller
Brand:
SHELLY
Colour:
Black
Length
:
8 cm
Width
:
1 cm
Height
:
8 cm
Barcode
:
3800238073039
Series:
Shelly Accessories
Master box quantity:
20
Product description

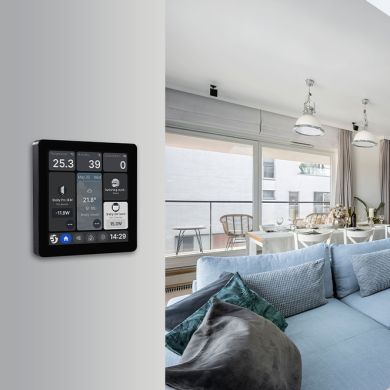

Smart wall control panel with a 4' capacitive touchscreen (720x720px, 5-point touch), fully customizable interface. Quad-core processor, 1GB RAM and 8GB flash memory. Removable power base with a built-in relay (1 switching output); can be replaced with a 2-output base. Integrated light, proximity and gesture sensors. Fits standard wall boxes. Black color.
Features:
- Display: 4' capacitive, 720x720px, 5-point touch
- Processor: Quad-core (up to 1.5 GHz)
- Memory: 1GB RAM + 8GB Flash
- Power supply: 100-240Vac or USB-C (5Vdc)
- Multi-protocol connectivity: Wi-Fi 6 (2.4+5GHz), Bluetooth 5.0
- Output base: 1 relay (5A), replaceable with a 2-output base
Typically used for remote control of:
- Lighting
- HVAC
- Scenes and automations
- Energy consumption monitoring
Features:
- Display: 4' capacitive, 720x720px, 5-point touch
- Processor: Quad-core (up to 1.5 GHz)
- Memory: 1GB RAM + 8GB Flash
- Power supply: 100-240Vac or USB-C (5Vdc)
- Multi-protocol connectivity: Wi-Fi 6 (2.4+5GHz), Bluetooth 5.0
- Output base: 1 relay (5A), replaceable with a 2-output base
Typically used for remote control of:
- Lighting
- HVAC
- Scenes and automations
- Energy consumption monitoring
