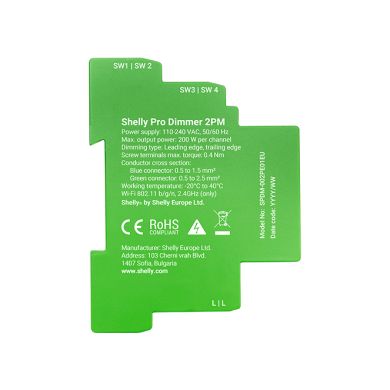

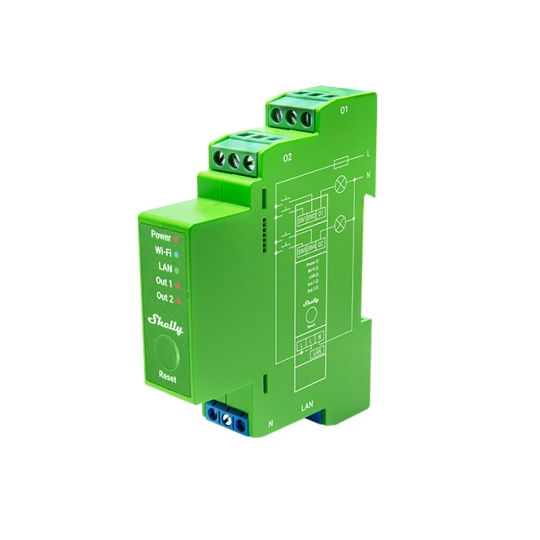

Shelly Pro Dimmer 2PM — 2-channel dimmer 16A with metering, DIN rail
Specifications
Reference:
SH PRO DIMMER 2PM
Subcategory:
Construction Material
Type:
Dimmers
Brand:
SHELLY
Colour:
Green
Length
:
1.9 cm
Width
:
6.9 cm
Height
:
9.4 cm
Voltage:
110-230V ~ 50/60Hz
Material:
Plastic
Barcode
:
3800235268179
Series:
Pro
Master box quantity:
120
Product description
Professional 2-independent-channel dimmer for DIN rail. Dims and measures the consumption of dimmable LED, halogen, and ferromagnetic transformer loads between 110-240V, with per-channel power measurement. Automatic calibration, night mode, and protection against over-temperature, over-current, and over-voltage. Wi-Fi, LAN and Bluetooth connectivity.
Features:
- 2 channels
- Maximum load: 16A per channel
- Power supply: 110-240Vac
- Multi-protocol connectivity: Wi-Fi 4, Bluetooth 4.2, LAN
- Power measurement (per channel)
Typically used for remote control of:
- Dimmable lighting
- LED strips
- Intensity regulation in professional installations
Features:
- 2 channels
- Maximum load: 16A per channel
- Power supply: 110-240Vac
- Multi-protocol connectivity: Wi-Fi 4, Bluetooth 4.2, LAN
- Power measurement (per channel)
Typically used for remote control of:
- Dimmable lighting
- LED strips
- Intensity regulation in professional installations
